VMS 3DX Portable Offroad Navigation - P3DX-P001

The new VMS 3DX comes pre-loaded with 3D vector maps covering every state and territory in Australia. What’s cool about the new 3DX is it comes pre-loaded with CAMPS11 giving you access to over 5000 locations of free or low coast campsites, RV Park, National Parks, State Forests, Farm Stays, Pub Stays, Dump points and more.

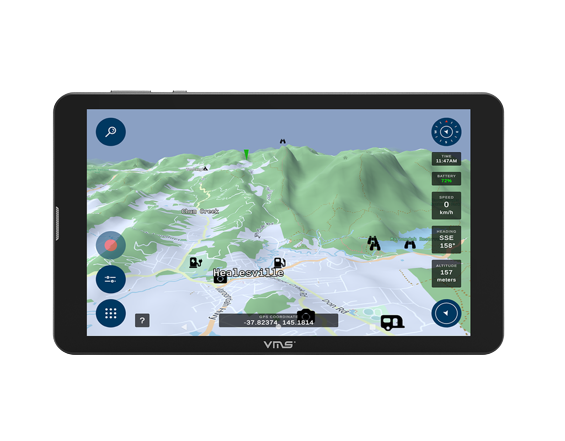

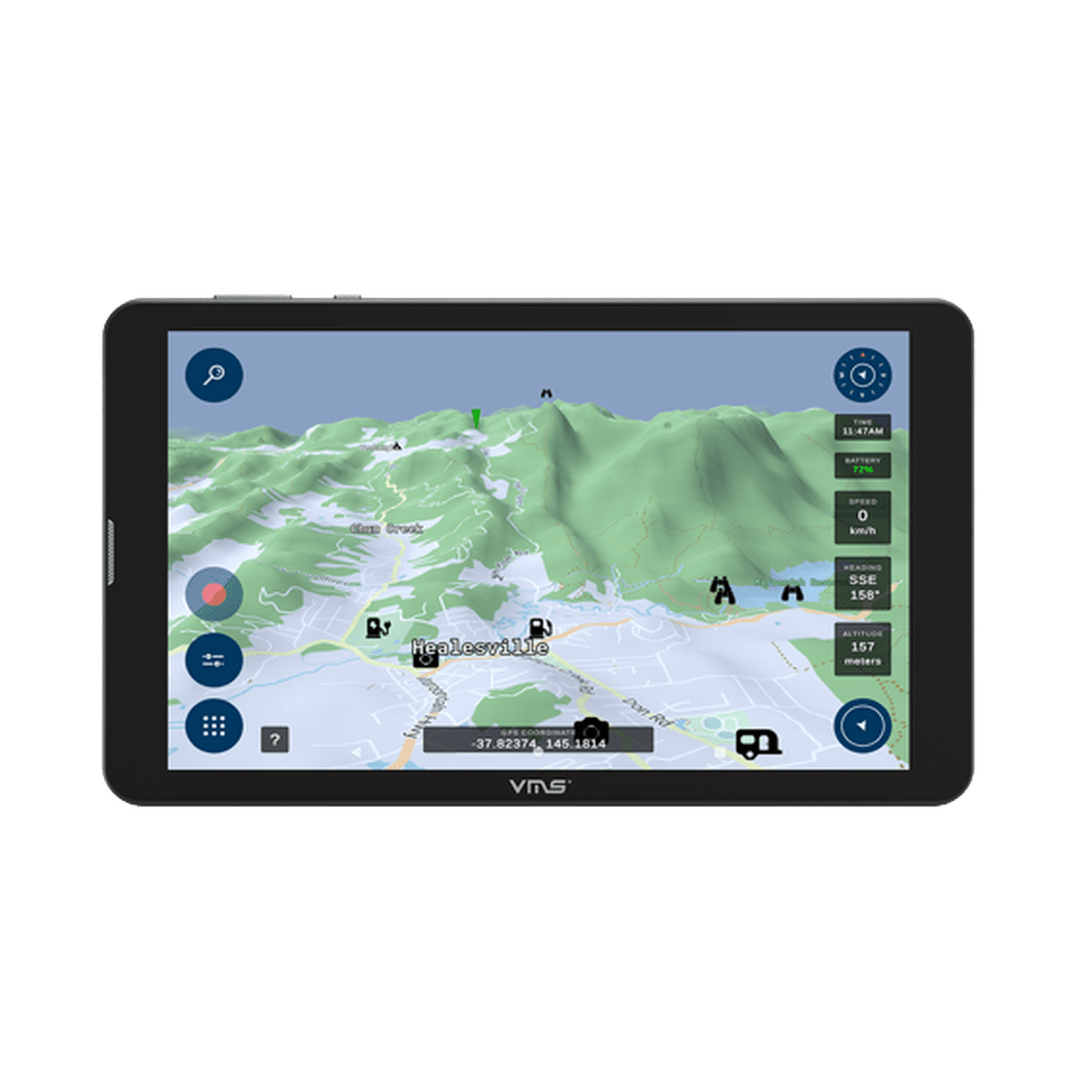

3D Vector Map: This allows you to see the terrain in 3D and evaluate any tracks gradient at a simple glance.

CAMPS11: access free campsites, Campgrounds, Caravan Parks, Hotels, Motels & more with CAMPS11 and Caravan Park 6 POIs. Totalling over 7,911 verified locations.

Raster Map Support: Install and overlay your favourite raster maps over 3D terrain.

Better Accuracy: Inbuilt GPS supports multiple GNSS technologies to provide accurate location and offline navigation.

Looking to upgrade to Topographical maps?

* Provided the track is contiguous to the rest of the road network.

Hardware

• Unit dimensions (W*H*D) 208*127*9.3 (in mm)
• Display size 8" diagonal (20.32 cm)
• Display resolution 1200*800
• Battery 4000mAh Cobalt (High temp resistance)
• Connections Type-C USB, microSD card and sim slot, audio jack
• Camera 5-megapixel rear camera
• Processor UNISOC T618 2.0 GHz (8 cores 2*Cortex A75 +6*Cortex A55)
• Operating System Android 10
• Warranty 12 months warranty on hardware Charging port Type-C USB

System Memory

• Internal memory 32GB RAM 4GB
• Expandable memory microSD card up to 128GB

Communication

• Bluetooth 5 Wifi 802.11 a/b/g/n/ac

Network

• 4G LTE and 3G supported

What's In the box

• VMS 3DX unit
• Type- C USB cable
• 240V wall charger
• 12V/24V 2A car charger

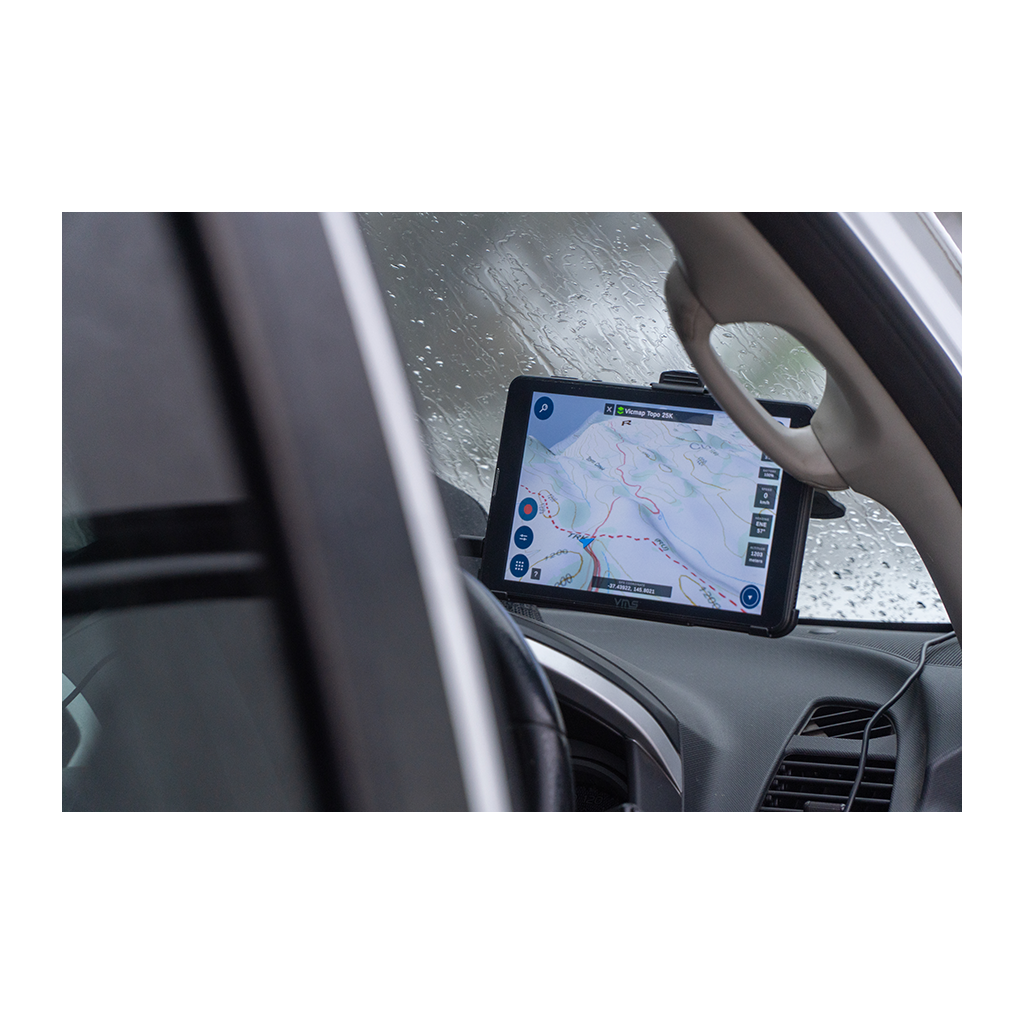

• Windscreen mount and bracket
