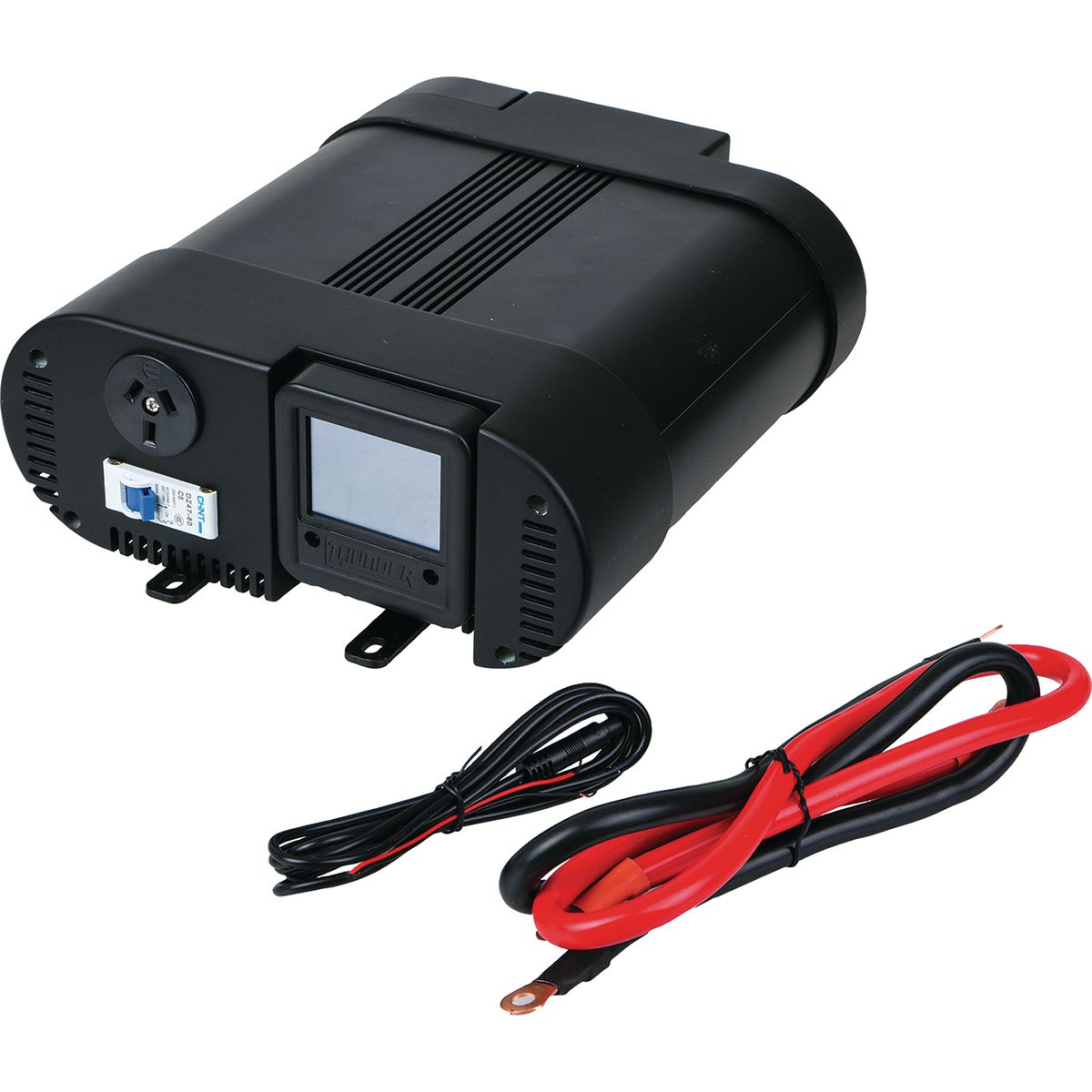

Thunder 600W Inverter Pure Sine Wave - TDR02600

Thunder 600W Inverter Pure Sine Wave - TDR02600

Any time is a good time to venture outside and experience the great outdoors when you have stunning scenery and breathtaking sights right outside your door. Thunder shines when it comes to providing your 4WD with high-quality travel and touring accessories. The line of Thunder products has been tested and built to take whatever you can throw at them, without breaking the budget. They are designed to be both economical and dependable.

Specifications

• Continuous Output Power: 600W
• Peak Power (only for a short time): 1200W
• Output Overload Protection (manual restart): 680W
• Output Voltage: 240V
• Efficiency (full load): 90%
• Safety Switch: 5A250VAC
• Input Cable Type Supplied: 70cm AWG8(7.2mm2)
• External Fuse Specification: 50A
• Measurements: 263x233x95mm (80mm C2CMount holes)
• Minimum Input Voltage: 11V
• Output Frequency: 50Hz
• Output Waveform: Pure Sine Wave
• Input Voltage Range: 11-15V
• Input Low Voltage Warning: 11.5V
• Input Low Voltage Cut-off: 11V
• Input Over-Voltage Cut-Off (automatically resets): 15.5V
• Standby Current (when main switch is off): 11mA
• No Load Working Current (when main switch is off): 0.5-0.6A
• Protection Systems (output): Over/under-voltage protection, overheating protection, overload protection, output short circuit protection

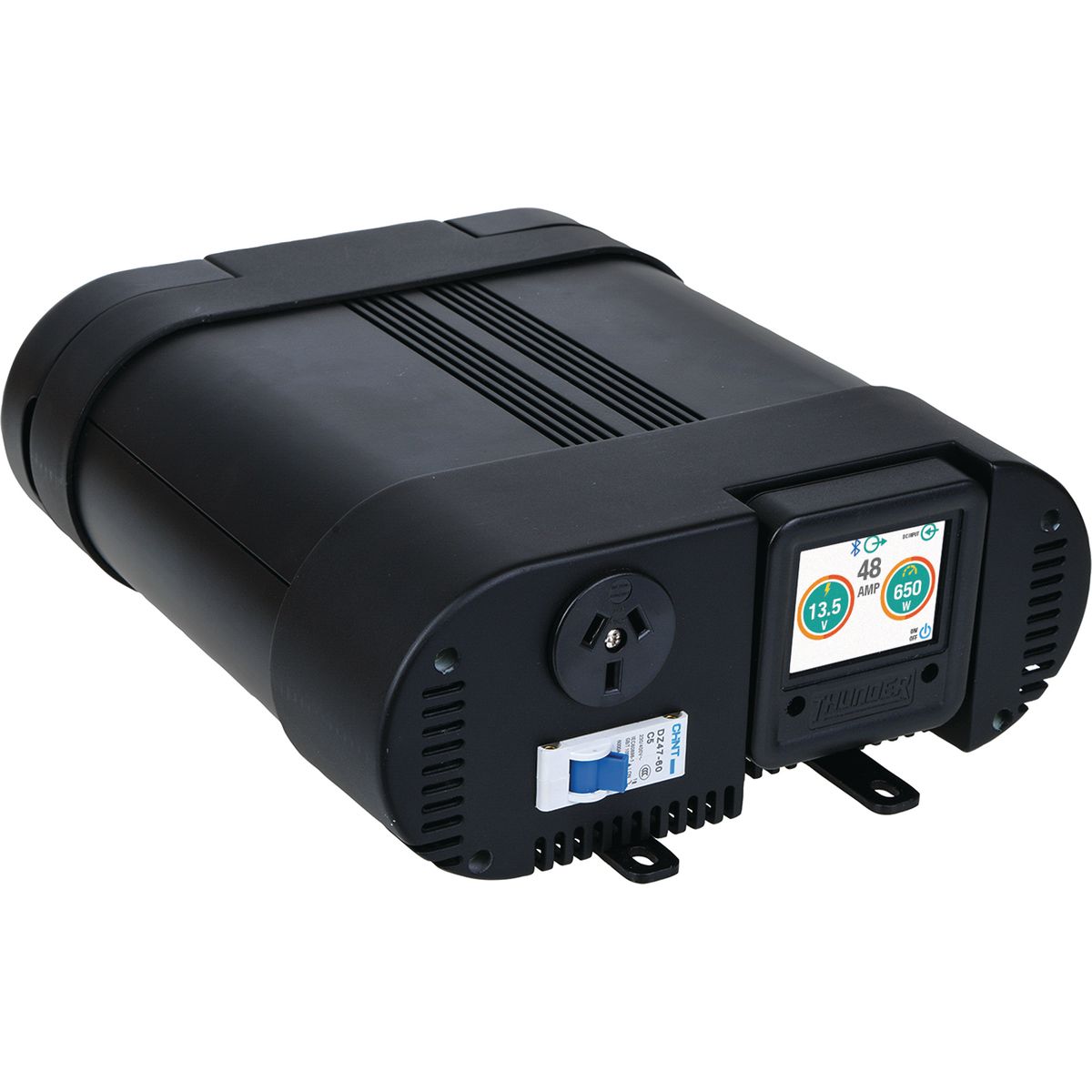

• LCD Display Functions Displays: output power, input voltage, input current and also has an on/off button for switching unit on/off
• LCD Screen Extra Cable Length: 0.3m and 1.7m extension cable for LCD display unit power supply
• Internal Operating Temperature Range: -10C - 50C
• Internal Over-Temperature Protection (requires manual reset): 60C - 65C

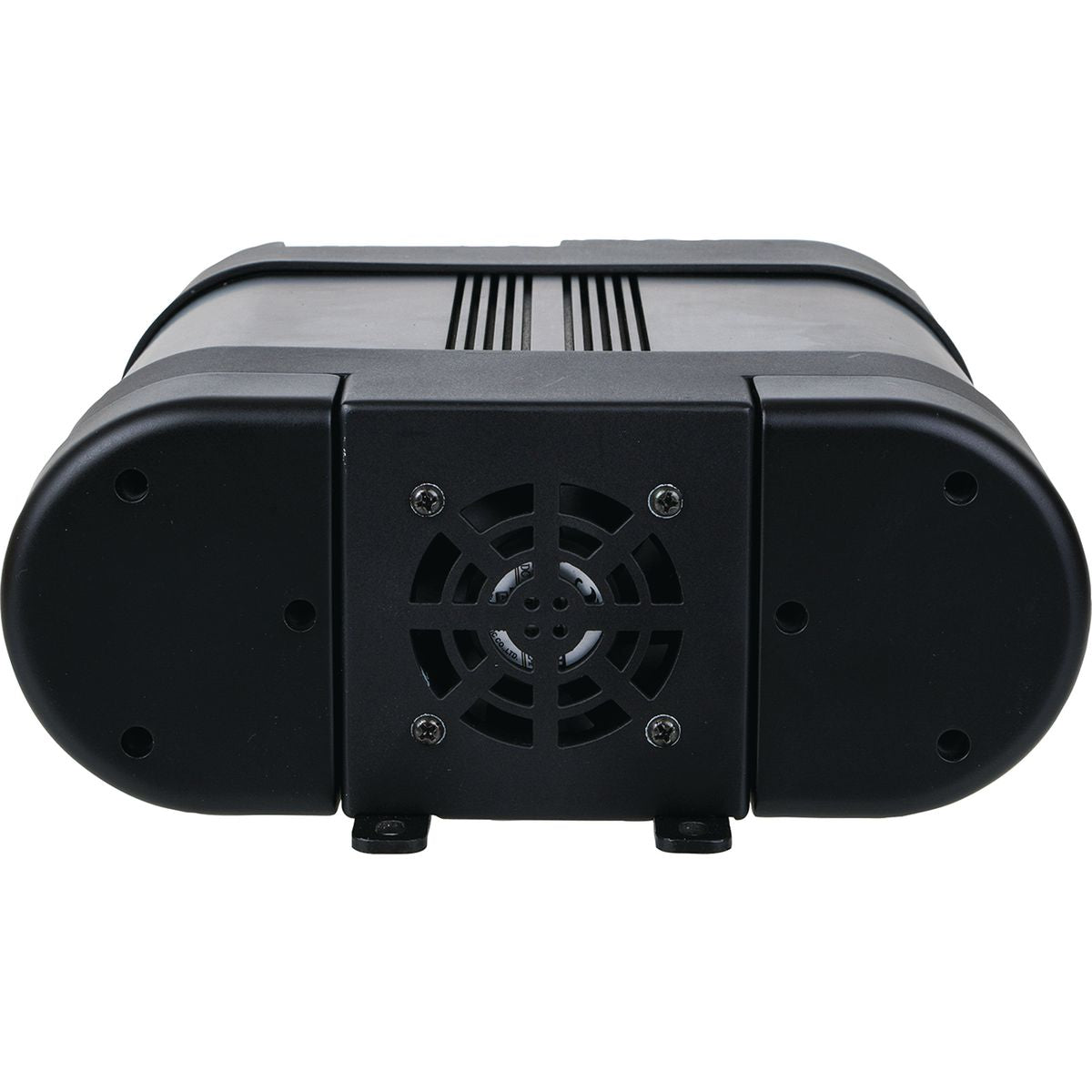

• Cooling Fan: Single brushless fan (automatic operation)
• Fan Control Method: Temperature maintained at 40C 10C
• Approvals: CE, EMC, AS/NZS 4763:2011
