Thunder 30A Battery Management System - TDR02026

The Thunder 30A Battery Management System offers a comprehensivecharging and maintenance solution for your 4WD, caravan and camper trailer.Designed to charge and maintain auxiliary batteries, the Thunder BatteryManagement System is the perfect addition to any vehicle requiring themanagement of a dual battery setup.

Designed to be a long-term solution with the highest level of safety in mind, theThunder Battery Management System features a unique 8 stage charging programwith the intelligence to determine the best charge rate for your auxiliary battery.The remote mount Bluetooth LCD screen also conveniently gives you bettervisibility on your battery's state of charge, so you never have to worry abouthaving a flat battery again.

Whether you're heading off the grid or camping at a powered site, Thunder'sBattery Management System ensures you will always have the power you need

Features:

• Heavy duty aluminium case

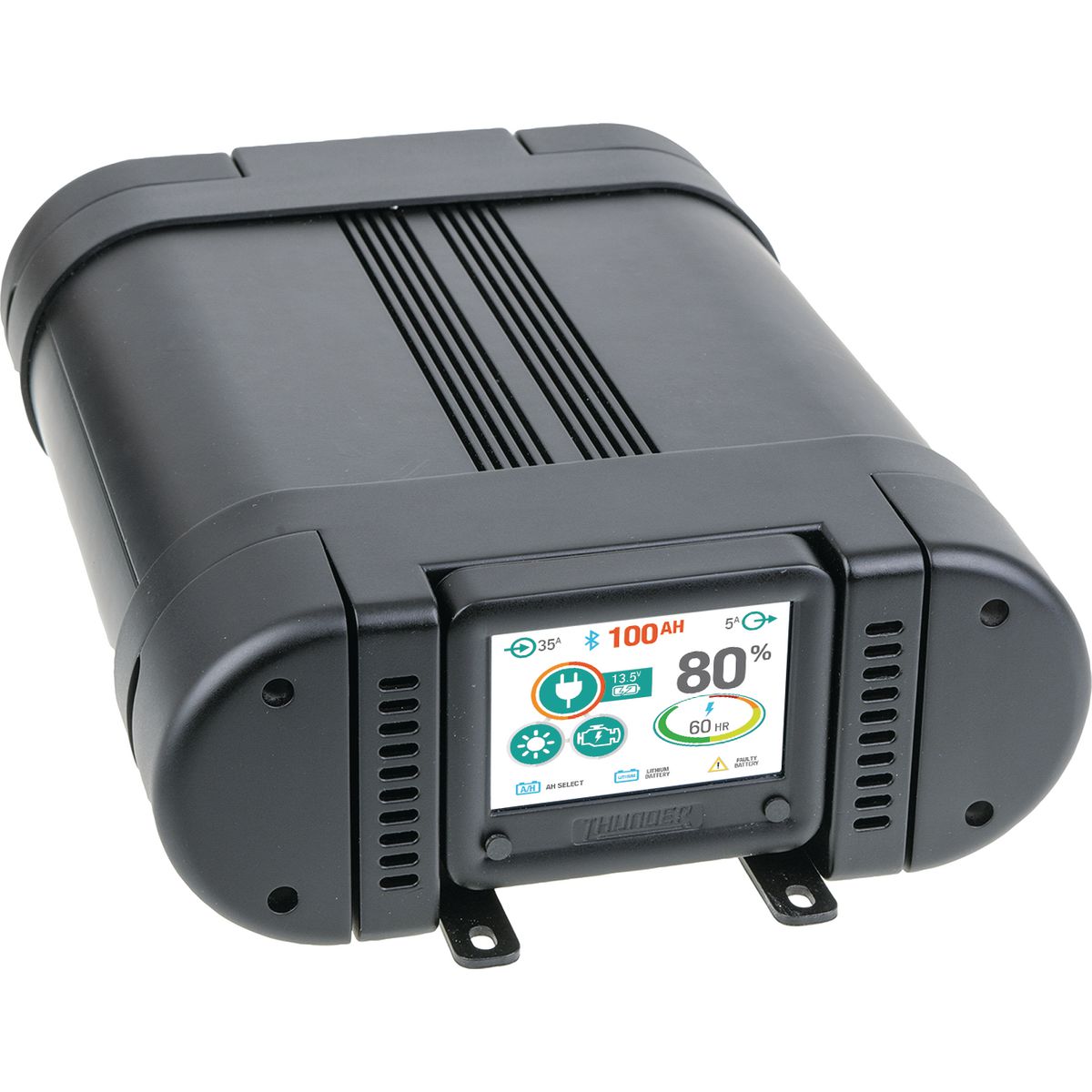

• Easy to read remote mount Bluetooth LCD screen
• 30A 240V charging
• 30A DC-DC charging
• Solar input MPPT regulated output (50V 500W max)
• Displays battery time to empty

Specifications:

• Output: 240V 30A
• Output DC-DC: 30A
• Input Fuse Rating Minimum: 50A
• Output Fuse Rating Minimum: 50A
• Vehicle Input Voltage Range: 12.2V - 30V* (If >30V the unit will shut off, reset will be needed)
• Minimum/Maximum Charging Voltages: 13.1V - 15.2V (stops charging when battery is below 12.2V)
• Lithium Voltages: 14.2V bulk, 13.2V float
• Solar Input Voltage Range: 13V-50V
• Maximum Solar Watt Input: 500W (exceeding 500W of solar will damage the unit)
• Charging Style 8 Stage from vehicle and 3 stage from solar and lithium
• Operating Temperature: 0C to 60C (current de-rates after 60C)
• Float Voltage: 13.8V
• Standby Current: 10mA
• Battery Range: 18 to 500Ah
• External Shunt: 200A
