RUNVA WINCH IND

Runva EWS10000 Premium 24V With Synthetic Rope - EWS1000024VD

Regular price $2,000.00 AUD
Regular price Sale price $2,000.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

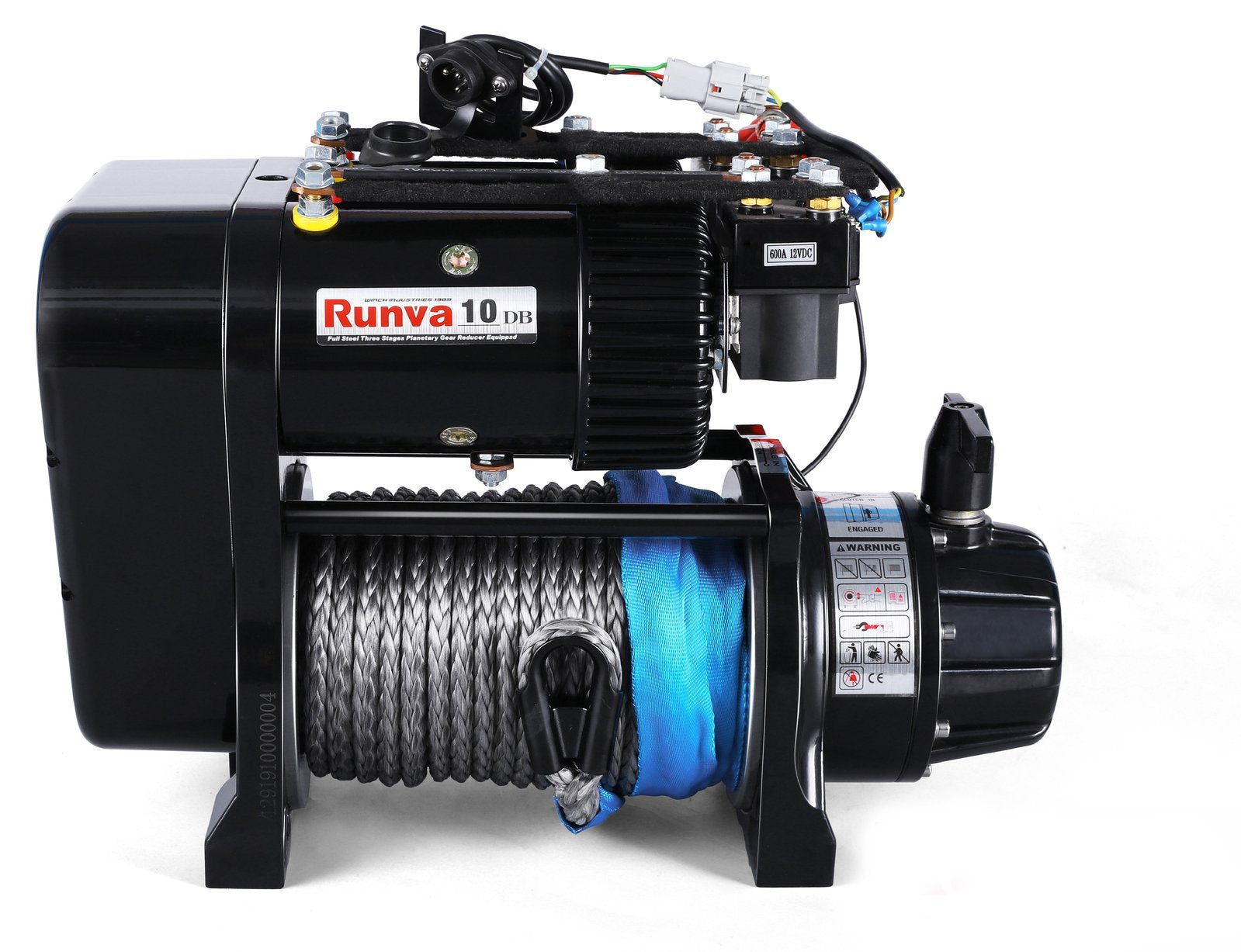

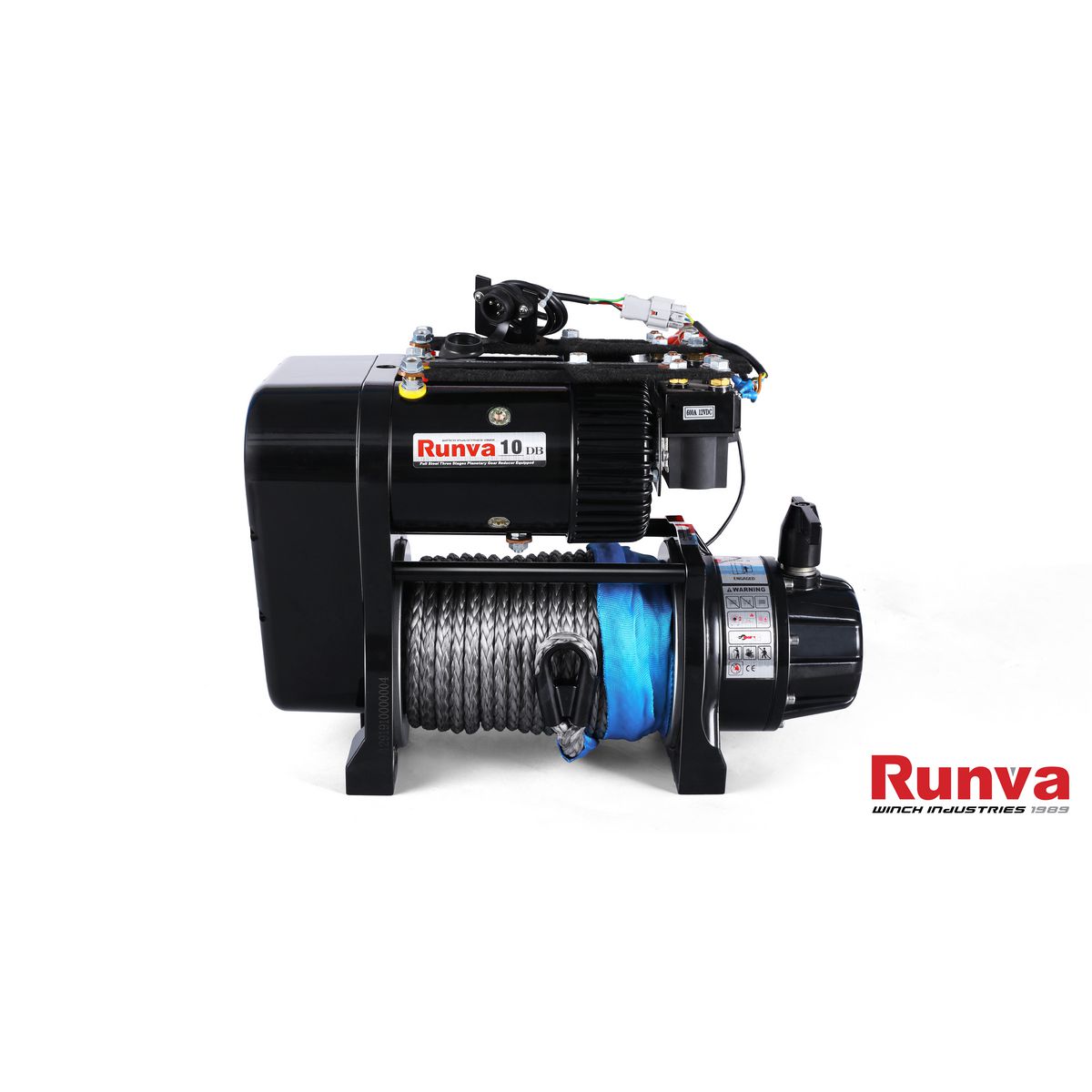

The Runva EWS1000024VD Premium is their twin motor low mount competition spec winch. (Different to a high mount winch). Featuring a massive 10,000lb of line pull from two powerful and reliable 7.2HP motors. This winch has a huge amount of torque. The gearbox is a three stage planetary setup with low 108:1 gear ratio for fast line speeds.


This model has all of their premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is their most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in their vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.


The clutch is easily engaged/disengaged via the Rotary Clutch system. The Runva EWS10000 Premium is also fully compatible with their optional extra Runva Air Clutch for easy in-cab control.


This model is the ideal choice for recreational or competition use. The Runva EWS10000 Premium will not bolt straight into a standard 4X4 Winch Bar/Bull bar. This winch does require a large supply of power to run it effectively. Runva recommend a battery of around 1000CCA minimum, along with upgraded power leads of around 70mm2 minimum.


Features:

  • Rated Line Pull: 10000LB (4536KG)
  • Motor: (12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP (PER MOTOR)
  • Gear Train: Full Steel 3 Stage Planetary
  • Gear Ratio: 108:1
  • Clutch Type: Stainless Steel Rotary Clutch
  • Clutch Handle Position: Gearbox Can Be Rotated
  • Brake: Automatic Ratchet Load Holding In The Gearbox
  • Cable Type: Synthetic Rope
  • Cable Size: 10MM X 25M
  • Drum Size: 72MM X 219MM
  • Mounting Bolt Pattern: 254MM X 114.3MM
  • Overall Dimensions: 470.50MM X 260MM X 326MM
  • Remote Control: Heavy Duty Handheld + Wireless
  • Battery Leads: You will need to source. Use a minimum of 70MM2
  • Finish: Black Powder Coating
  • Warranty: Limited 5 Year Electrical and Lifetime Mechanical. Competition use carries a limited warranty at Runva discretion
