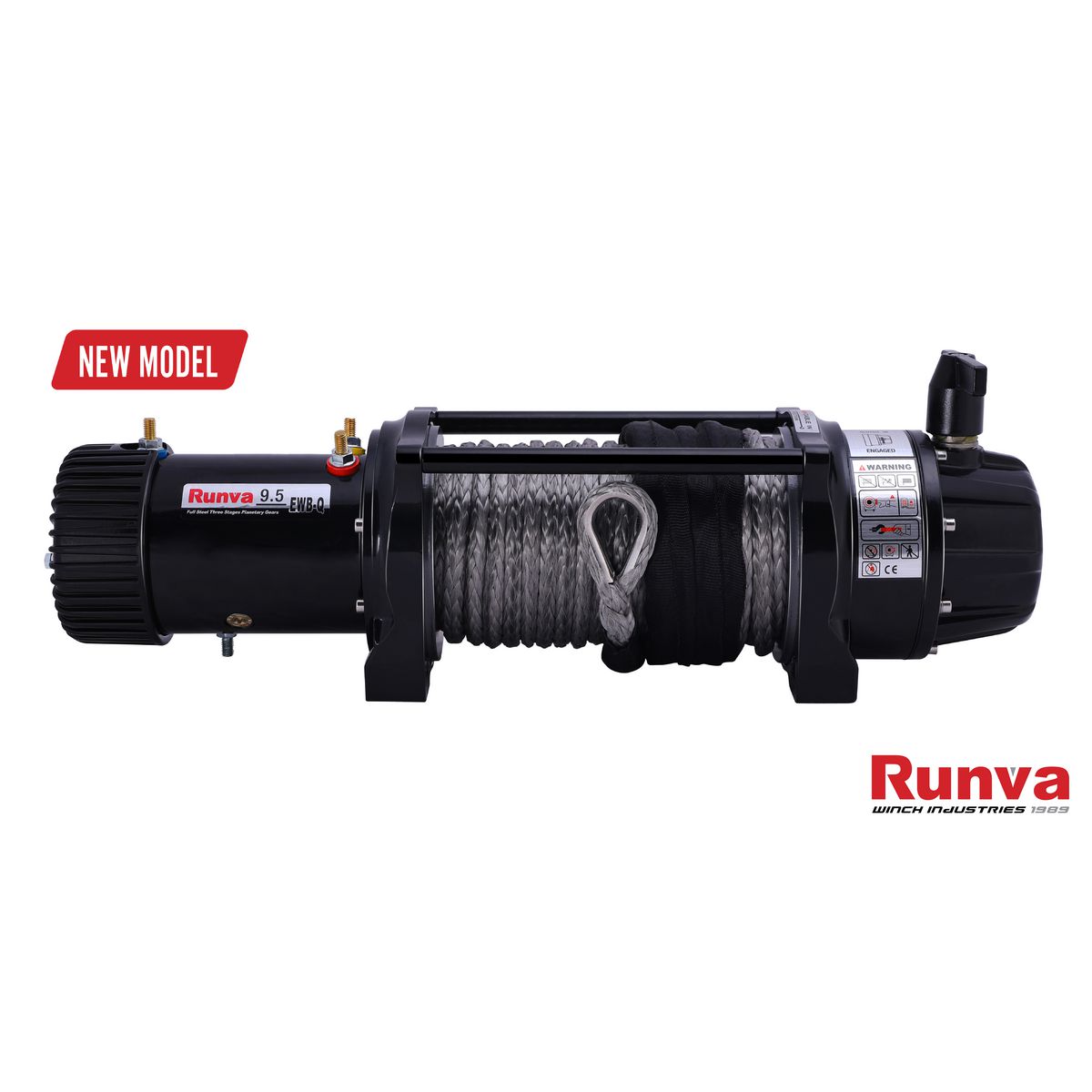

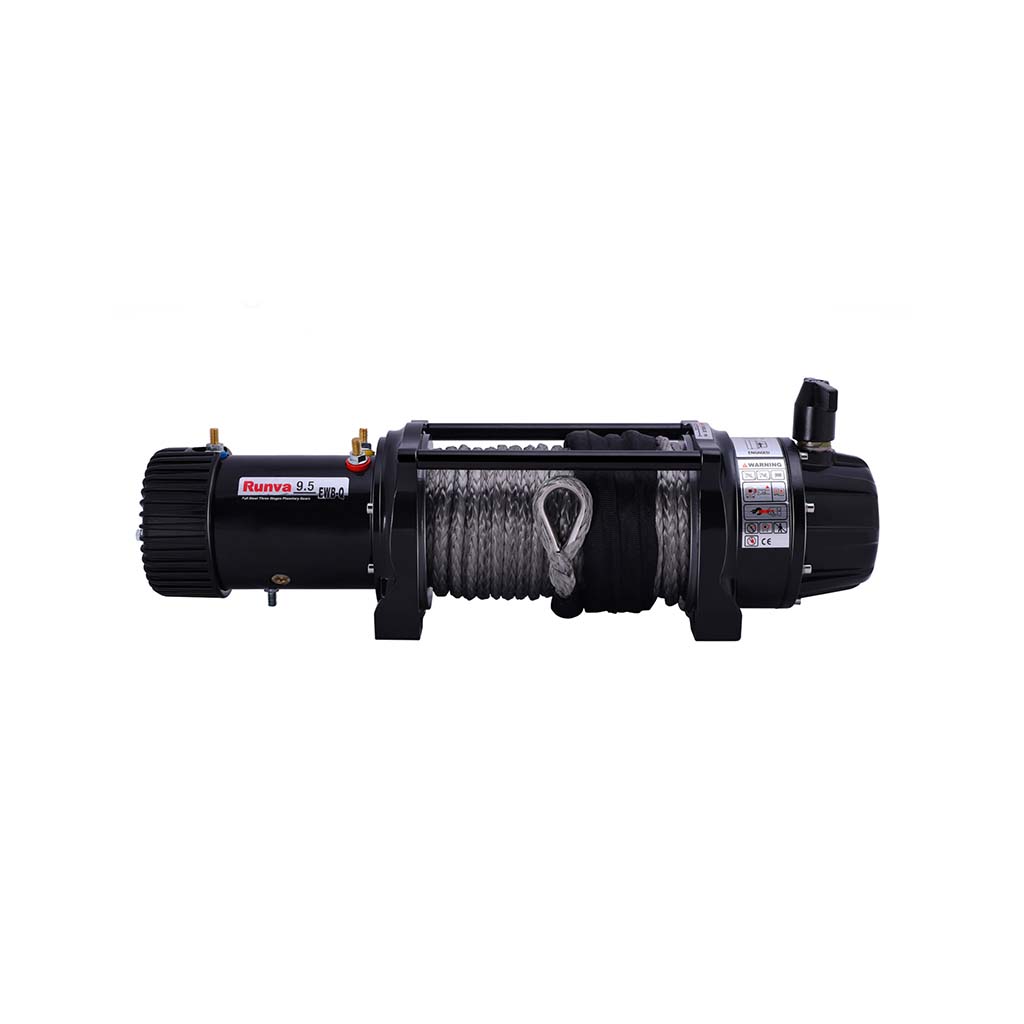

Runva EWB9500-Q Premium 12V With Synthetic Rope - EWB9500Q12VD

$1,065.00 AUD
$1,065.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

The Runva EWB9500-Q Premium is perfect if you are needing faster line speed for a small to medium sized vehicle (or other application). With 9,500lb of line pull, this winch is designed for fast line speed thanks to the large 7.2HP motor and low 108:1 gear ratio.


This model has all of Runva's Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is their most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in their vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.


The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB9500-Q is also fully compatible with the Runva optional extra Runva Air Clutch for easy in-cab control. This winch is quite large so might not fit all 4X4 Winch Bars/Bull bars. Please check the technical drawing below for sizing and compatibility with your setup.


Features:

  • Rated Line Pull: 9500LB (4309KG)
  • Motor: (12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP
  • Gear Train: Full Steel 3 Stage Planetary
  • Gear Ratio: 108:1
  • Clutch Type: Stainless Steel Rotary Clutch
  • Clutch Handle Position: Gearbox Can Be Rotated
  • Brake: Automatic Ratchet Load Holding In The Gearbox
  • Cable Type: Synthetic Rope
  • Cable Size: 10MM X 25M
  • Drum Size: 63MM X 216MM
  • Mounting Bolt Pattern: 254MM X 114.3MM
  • Overall Dimensions: 612MM X 160MM X 200MM
  • Remote Control: Heavy Duty Handheld + Wireless
  • Battery Leads: 2X 1.8M Heavy Duty Leads
  • Finish: Black Powder Coating
  • Warranty: Limited 5 Year Electrical and Lifetime Mechanical
