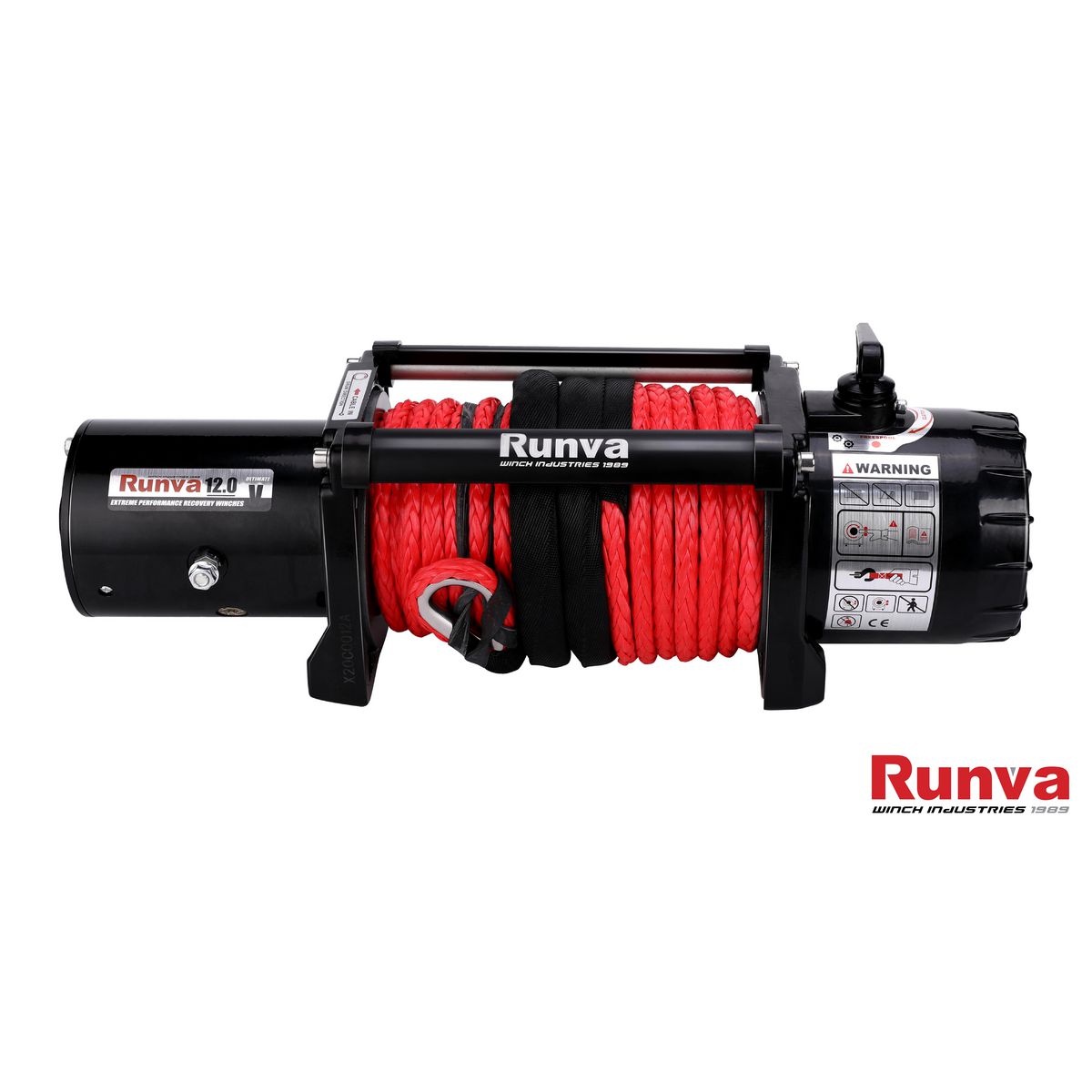

Runva EWB20000 Premium 12V With Synthetic Rope - EWB2000012VD

The Runva EWB20000 Premium is an extreme duty 20,000lb recovery winch. Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 370:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of 8.5M/Min*, this winch will get the job done in no time.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB20000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.

If you are looking for a heavy duty winch, for either recreational or commercial applications, the Runva EWB20000 Premium is the winch for you. This model is perfect for your expedition Unimog, Iveco Daily, Tow Truck, marine or military applications. (+ many other applications)

Features:

Rated Line Pull: 20000LB (9072KG)

Motor: Series Wound (12V) 5.5KW/7.4HP - IP67 RATED

Gear Train: Full Steel 3 Stage Planetary

Gear Ratio: 370:1

Clutch Type: Stainless Steel Rotary Clutch

Clutch Handle Position: Gearbox Can Be Rotated

Brake: Automatic Ratchet Load Holding In The Gearbox

Cable Type: Synthetic Rope

Cable Size: 12MM X 26.5M

Drum Size: 88MM X 217MM

Mounting Bolt Pattern: 254MM X 114.3MM; 254MM X 165.1MM (8X M12 BOLTS)

Overall Dimensions: 626.5MM X 214MM X 252MM

Remote Control: 3.7M Heavy Duty Handheld + Wireless

Battery Leads: 2X 1.8M Heavy Duty Leads

Finish: Black Powder Coating

Warranty: Limited Lifetime

This model features a newly designed gearbox with integrated ratchet braking system. The entire winch is IP67 Rated .
