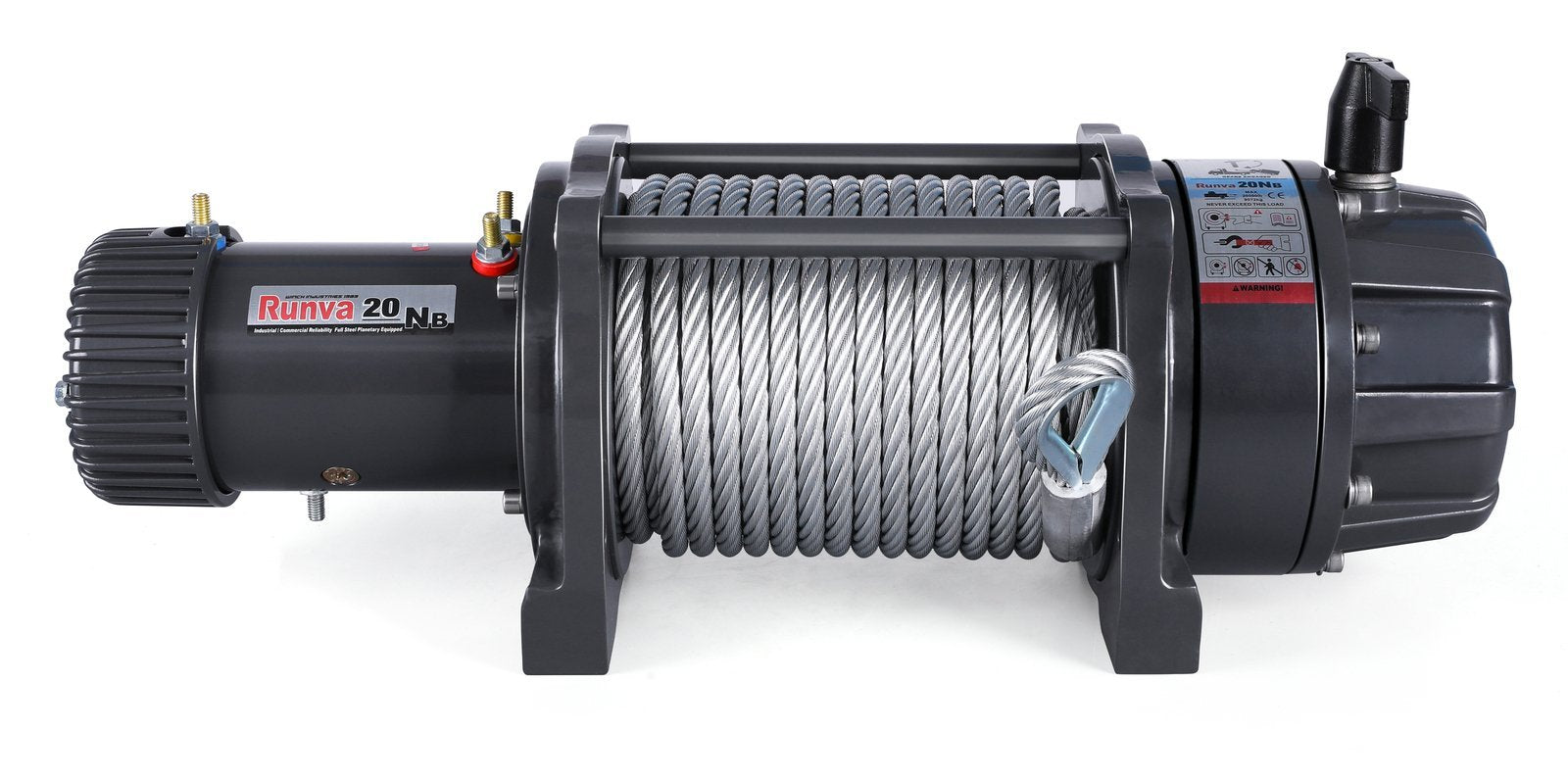

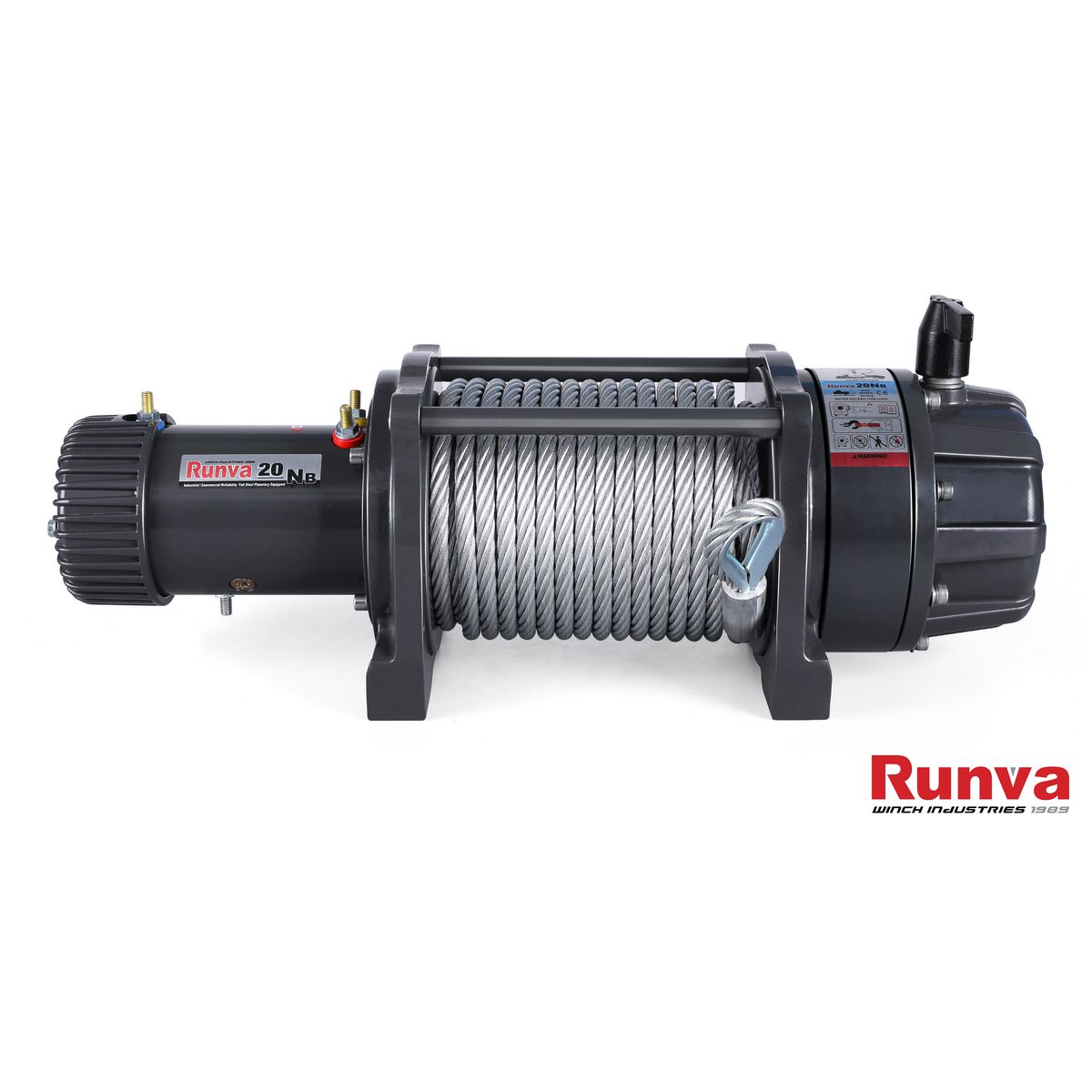

Runva EWB20000 Premium 12V With Steel Cable - EWB2000012VS

The Runva EWB20000 Premium is the extreme duty 20,000lb recovery winch. Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 370:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of 8.5M/Min*, this winch will get the job done in no time.

This model has all of the Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is the most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB20000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.

Specifications:

• Rated Line Pull: 20000LB (9072KG)
• Motor: (12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HP
• Gear Train: Full Steel 3 Stage Planetary
• Gear Ratio: 370:1
• Clutch Type: Stainless Steel Rotary Clutch
• Clutch Handle Position: Gearbox can be rotated
• Brake: Automatic Load Holding Screw Cone
• Cable Type: Aircraft Grade Steel Cable
• Cable Size:  12MM X 26.5M
• Drum Size: 88MM X 217MM
• Mounting Bolt Pattern: 254MM X 114.3MM; 254MM X 165.1MM (8X M12 Bolts)
• Overall Dimensions: 636MM X 214MM X 252MM
• Remote Control: Heavy Duty Handheld + Wireless
• Battery Leads: 2X 1.8M Heavy Duty Leads
• Finish: Grey Powder Coat
• Warranty: Limited 5 Year Electrical and Lifetime Mechanical Warranty (18 mMonth Commercial Use Warranty)
