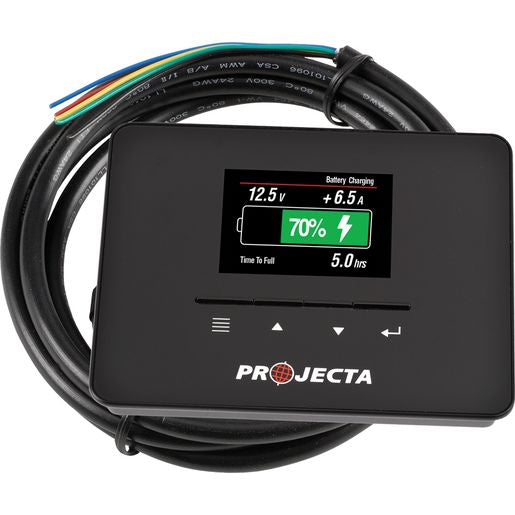

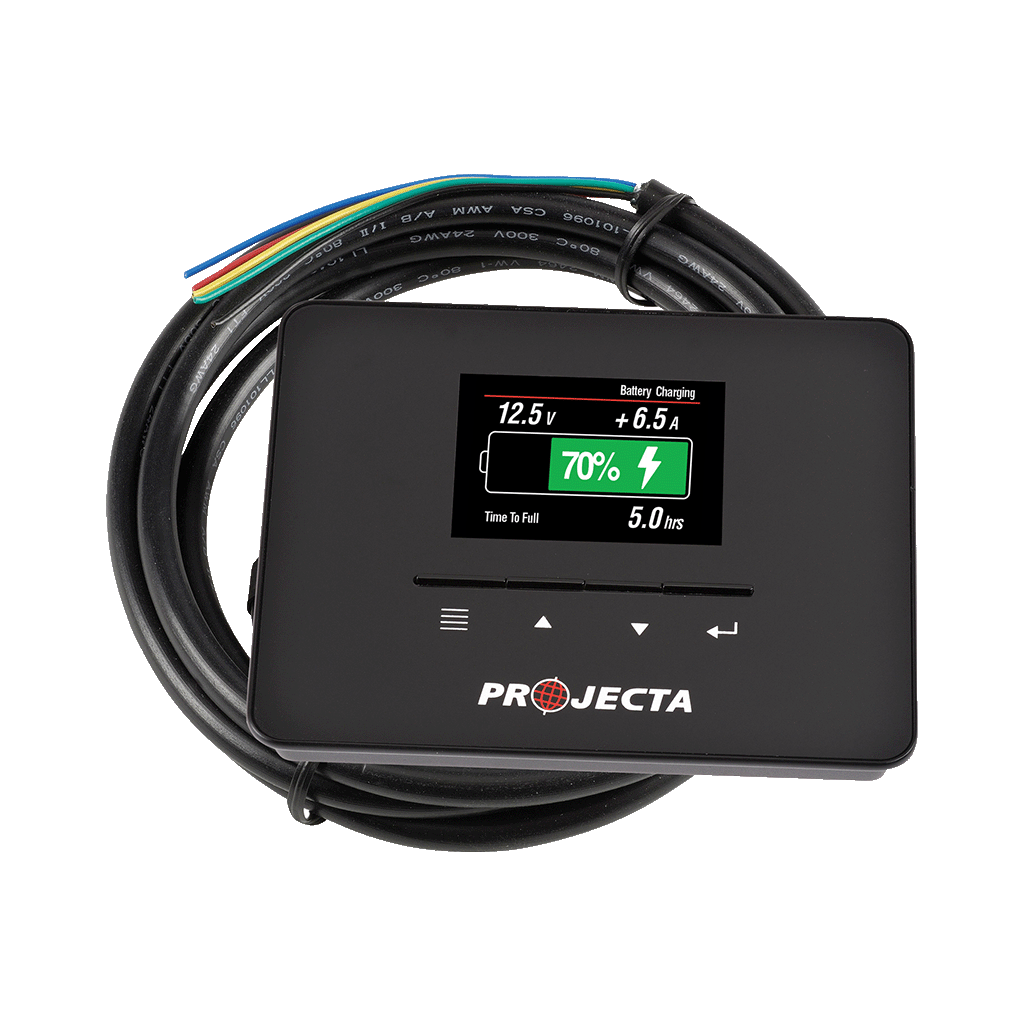

PROJECTA Smart Battery Monitor - BM320

The Projecta Smart Battery Monitor is a sophisticated, full colour LCD monitor that displays on-the-go your battery's total capacity, overall health and general status. The high intensity LCD display accurately depicts the state of charge, battery health and time left until the battery is fully charged or fully depleted, making it easy to know your batteries condition when hitting the trails or on remote trips.

The Projecta Battery Monitor is simple to operate thanks to the four tactile buttons which also allow the user to control low battery capacity and low battery health alarms to protect your 12v gear. The unit includes a surface mounting installation kit with a simple 'click fit' function, enabling fixture to any surface in your 4WD, caravan, campervan or camper trailer.

Specifications

• 2.4 inch colour LCD screen
• Displays predicted state of charge, battery health, time to full charge & time to empty
• Installation kit - Kit includes 500 Amp shunt and terminals for professional installation
• 1.5M pre-wired harness with 4 pin connector
• Max current - 320A
• Supported battery capacity - 5-320AH
• Battery type supported - Wet/AGM/Gel/Calcium
• Dimensions - 118 x 96 x 18mm
