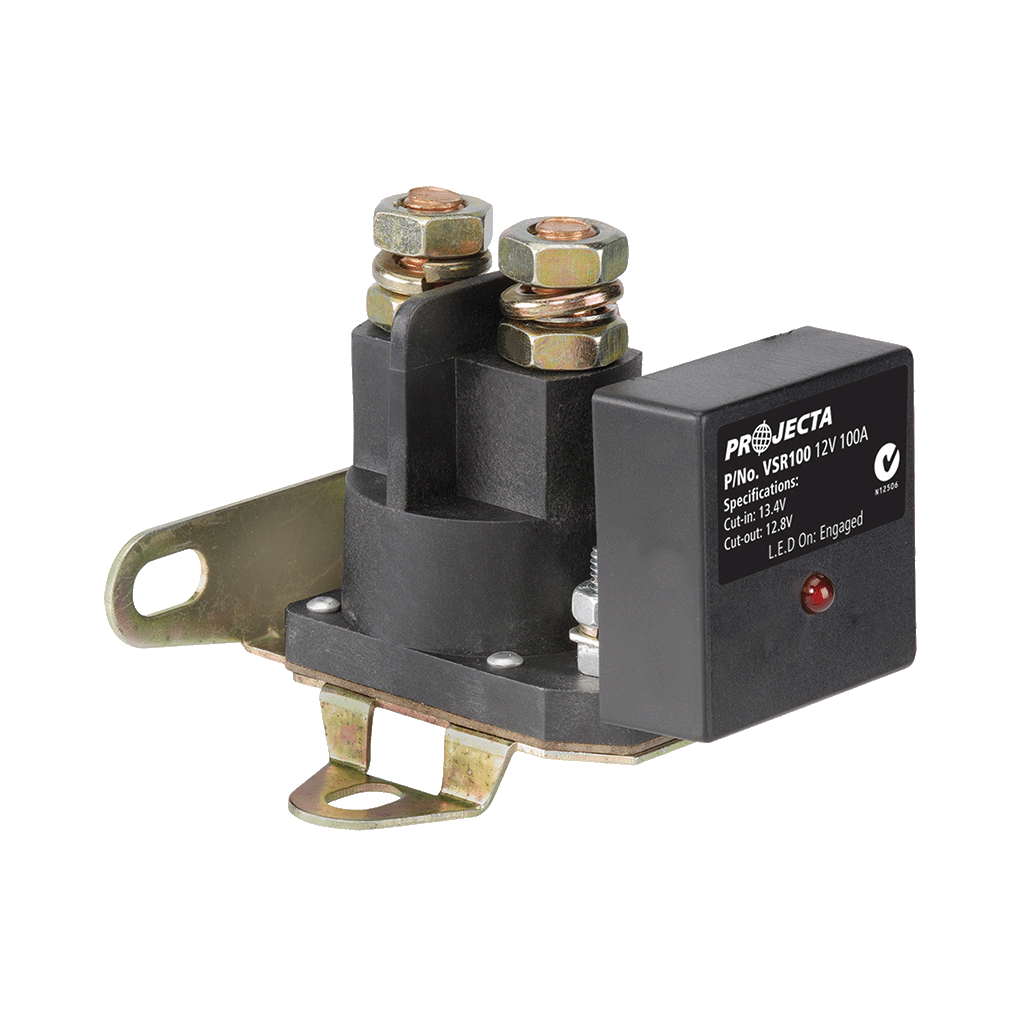

PROJECTA 12V 100A Voltage Sensitive Relay VSR100

Projecta VRS100 is the perfect ‘no-fuss’ power management controller suitable for a wide range of 12V DC applications, eg. dual batteries, winching, sending power to your camper trailer, etc.

Features:

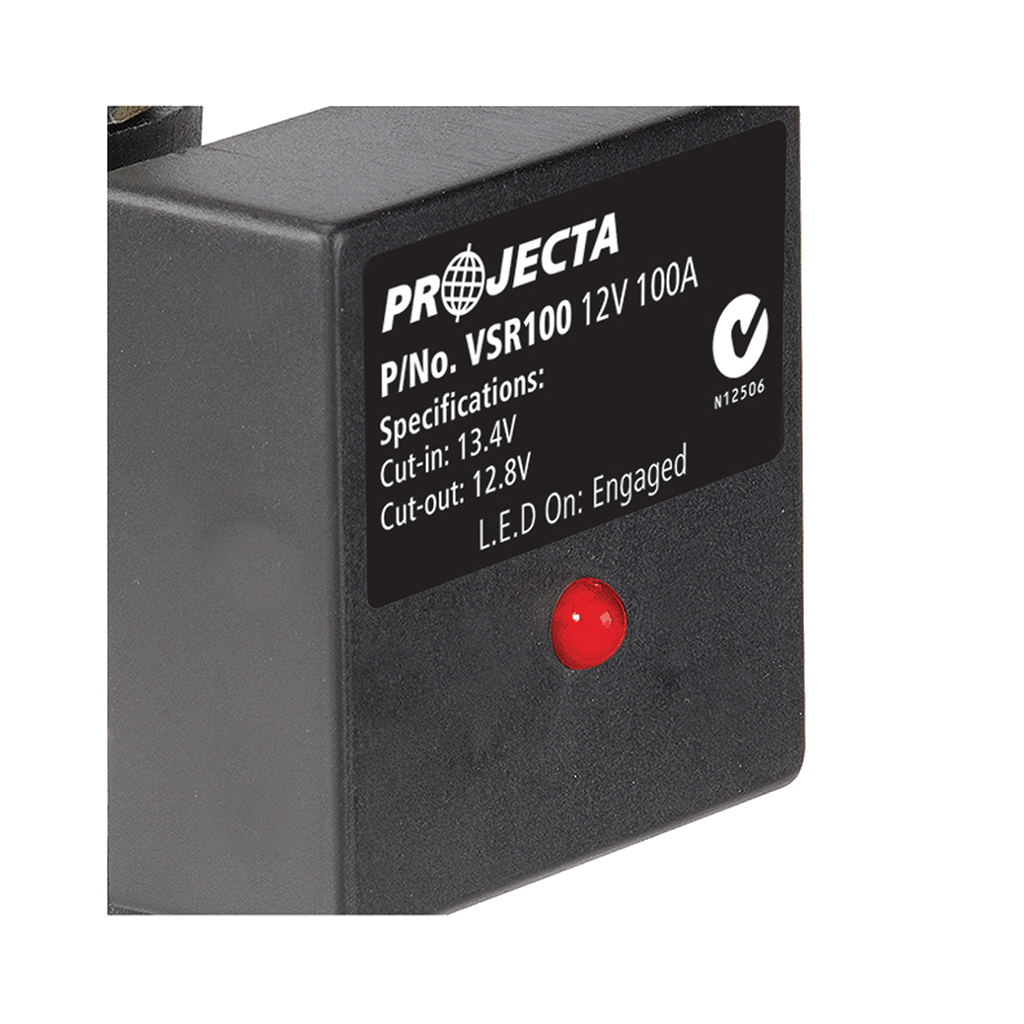

• L.E.D Indicator illuminates when VSR is activated
• IP66 Sealed Electronics prevents dust and water ingress
• Built-in protection guards vehicle against voltage spikes

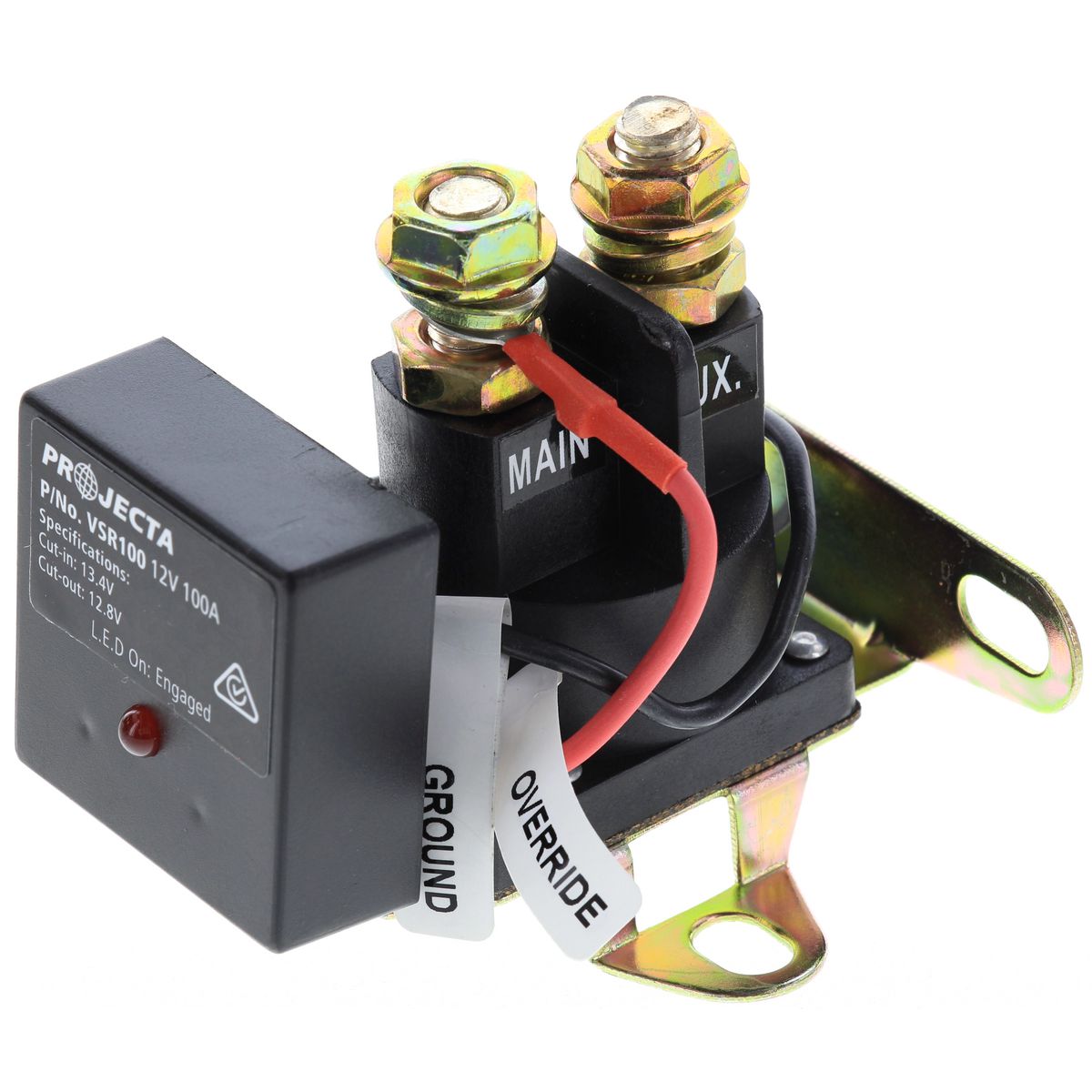

• Manual Override Bypasses automatic settings allowing the relay to engage below-set voltages
• Silver tip contracts provide exceptional current transfer

Specifications:

• Voltage - 12V
• Charging Current - 100A Continuous, 200A Peak
• Cut-In Voltage - 13.4V
• Cut-Out
• Voltage - 12.8V
• Cut-Out Delay - 8 seconds
• Minimum Operating Voltage - 10V
• Charge Type - Parallel
• Control - MCU
• Mounting - Surface/firewall Surface/firewall
• Current Draw - Charging 550mA (standby 10mA)
• Surge Protection - Built-in
• IP Rating - IP66
• Override - Requires min 10V
• Recommended Fuse - 150A
• Minimum Cable Size - 14mm2 (6 B&S)
• Approvals - EMC
