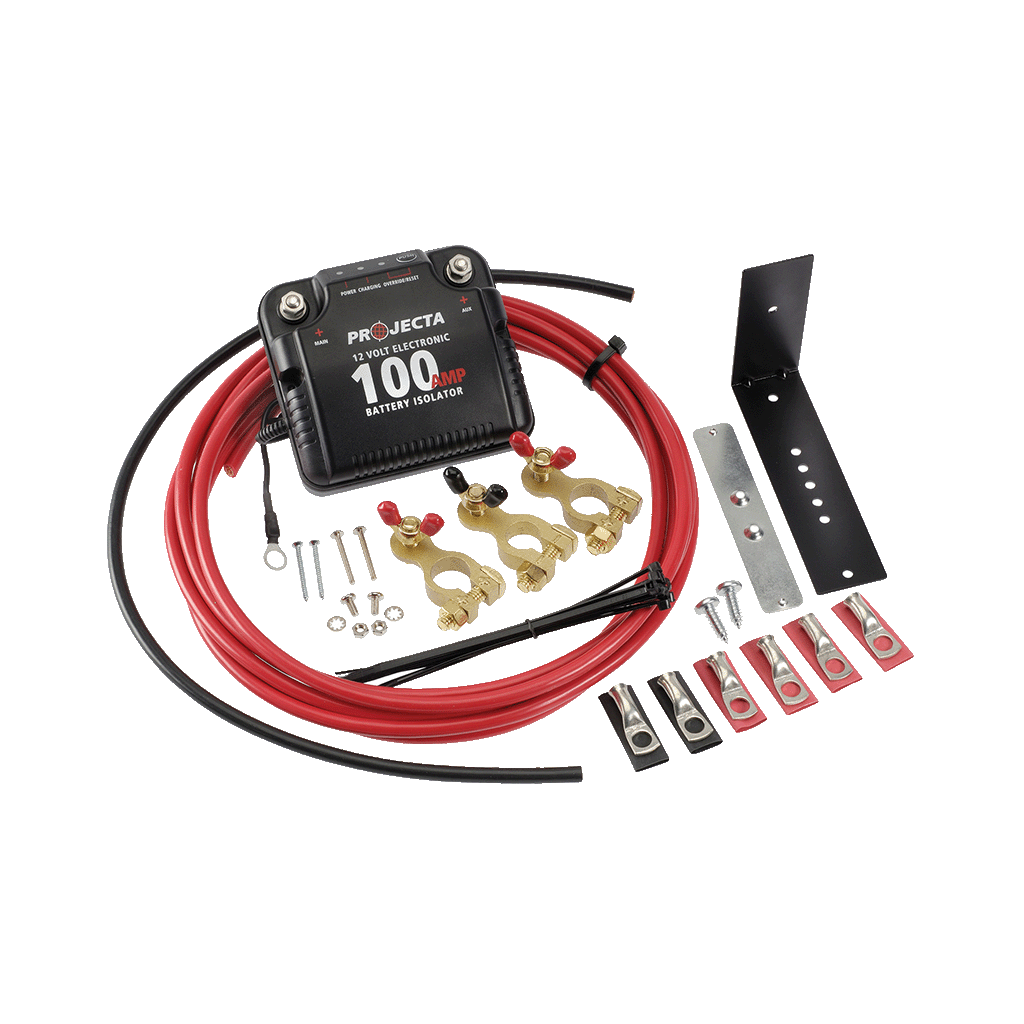

PROJECTA 12V 100A Electronic Dual Battery Isolator Kit DBC100K

PROJECTA DBC100K is an electronic isolator Kit that allows you to run accessories such as fridges, lights, and inverters without flattening your 4WDs main starting battery. DBC100K is a complete kit that has everything you need for installation and is rated to 100AMP peak and is suited for use with mid-sized 4WDs through to SUVs.

Features

• Priority Charging Ensures the starter or main battery is charged before connecting to auxiliary
• L.E.D Indicators illuminate to highlight charge status
• Manual Override allows you to manually paralleled for jumpstarting
• Built-in overcurrent and surge protection
• Supplied with everything you need for installation

Specifications

• Part No - DBC100
• Voltage - 12V
• Charging Current - 75A Continuous, 100A Peak
• Cut-In Voltage - 13.4V
• Cut-Out Voltage - 12.8V
• Cut-Out Delay - 60 seconds
• Minimum Operating Voltage - One battery above 7.5V
• Charge Type - Parallel
• Control - MCU
• Mounting - Surface/firewall battery side
• Current Draw - Charging 500mA (standby 30mA)
• Surge Protection - Built-in
• Approvals - EMC
