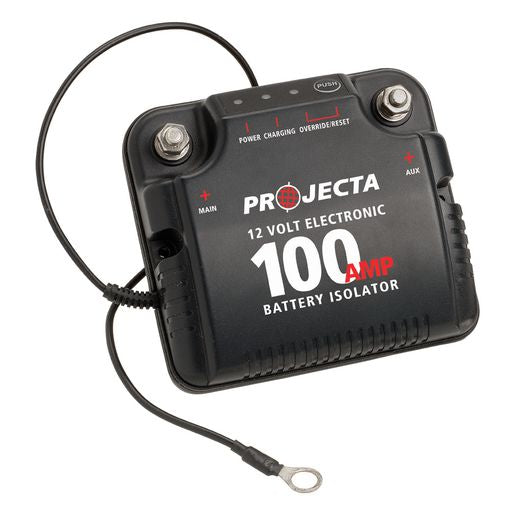

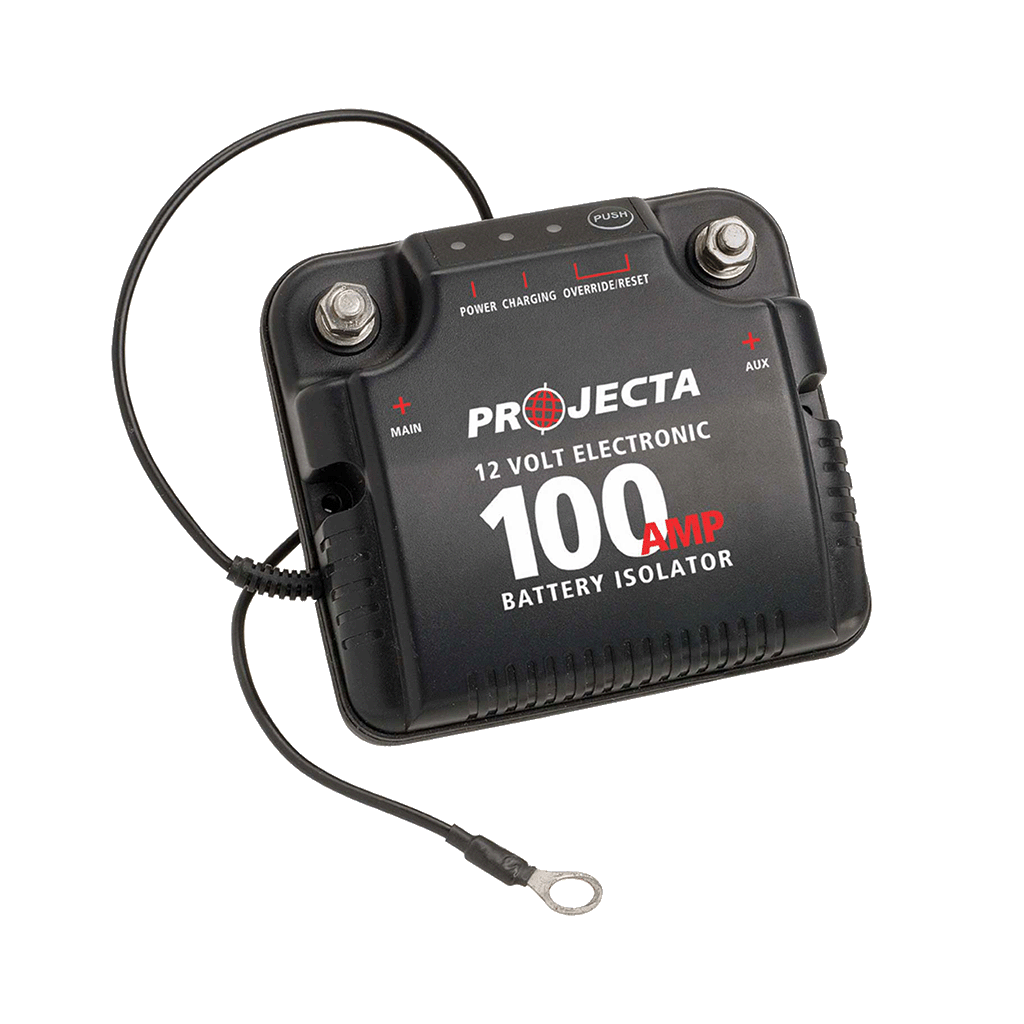

PROJECTA 12V 100A Electronic Dual Battery Isolator DBC100

Projecta DBC100 is an electronic isolator that allows you to run accessories such as fridges, lights and inverters without flattening your 4WDs main starting battery. DBC100 is rated to 100AMP peak and is suit for use with mid-sized 4WDs through to SUVs.

Features

• Priority Charging Ensures the starter or main battery is charged before connecting to auxiliary
• L.E.D Indicators illuminate to highlight charge status
• Manual Override allows you to manually paralleled for jumpstarting
• Built-in overcurrent and surge protection
• Supplied bracket and screws for mounting unit

Specifications

• Part No - DBC100
• Voltage - 12V
• Charging Current - 75A Continuous, 100A Peak
• Cut-In Voltage - 13.4V
• Cut-Out Voltage - 12.8V
• Cut-Out Delay - 60 seconds
• Minimum Operating Voltage - One battery above 7.5V
• Charge Type - Parallel
• Control - MCU
• Mounting - Surface/firewall battery side
• Current Draw - Charging 500mA (standby 30mA)
• Surge Protection - Built-in
• Approvals - EMC
