EzyAnchor 4WD Awning Pack / Base Caravan Awning Pack - AN-0056

EzyAnchor 4WD Awning Pack / Base Caravan Awning Pack - AN-0056

$63.00 AUD
$63.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The 4WD Awning Pack / Base Caravan Awning Pack has been designed for those who 4WD, camp, or caravan in the hard red and gravelly dirt of the Outback or hard-packed clay areas and sandy loam soils.

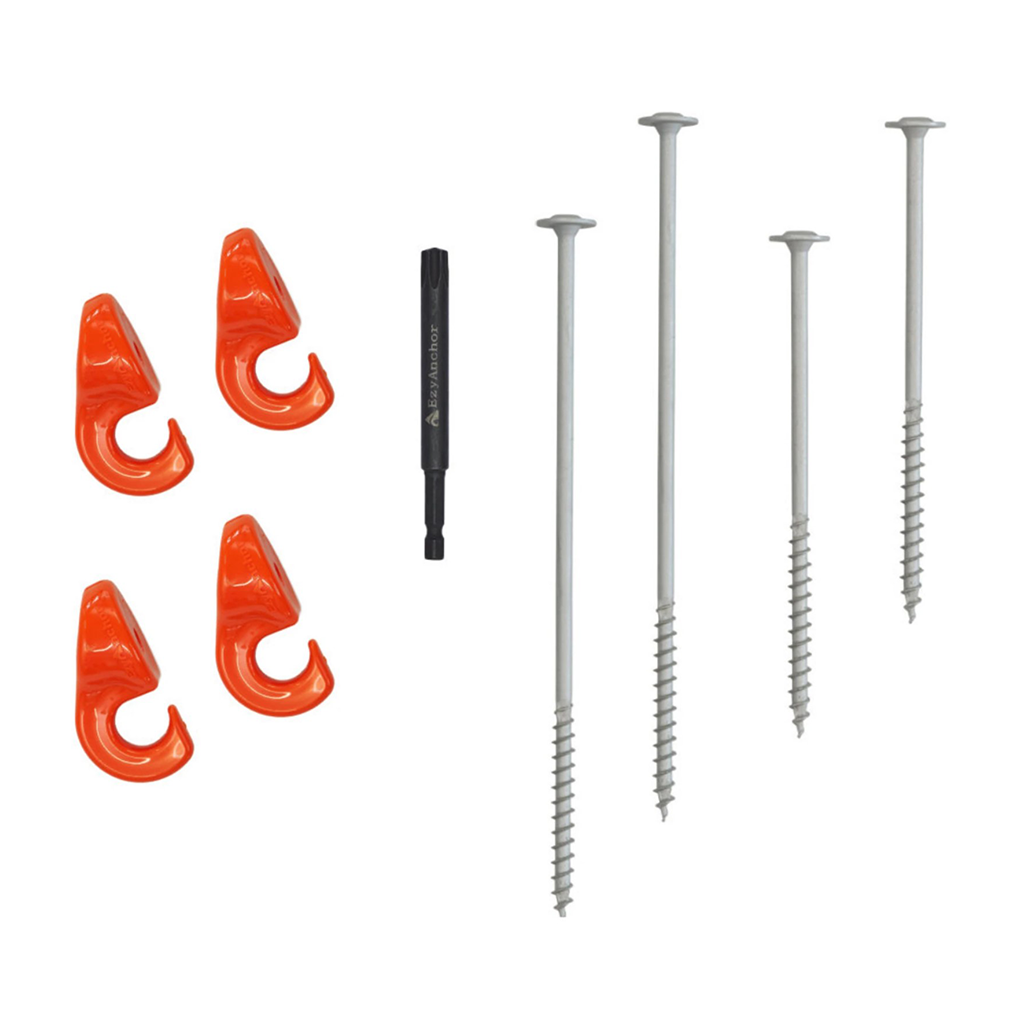

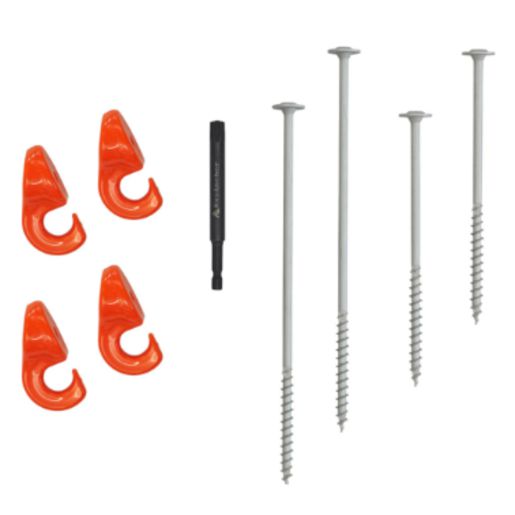

Package Includes

  • 4 x Ezy Anchors
  • 2 x Coastal pegs at 280mm long
  • 2 x Outback pegs at 200mm long
  • 1 x Torx T50 driver bit


4WD Awning / Base Caravan packs have been put together after months of testing in both types of the areas detailed above and also research throughout Central and Outback Australia.

Installation is super easy

  1. Take your cordless drill or impact driver
  2. Connect the supplied Torx driver bit to the drill/driver and secure it in the chuck
  3. Pick up your Ezy Anchor with screw-in position through the Ezy Anchor hole
  4. Connect your guy rope to the hook of Ezy Anchor
  5. Hold the guy rope and hook together with your guiding hand
  6. Pick up the drill and driver in your driving hand
  7. Insert the Torx driver into the head of the screw until fully seated in the screw head.
  8. Place drill in forward drilling position
  9. Commence drilling the screw downward into the earth keeping the EzyAnchor parallel to the earth so the screw penetrates at its set angle.
  10. Installation complete, how simple is that!


If you do happen to hit a solid object whilst installing the screw, simply remove and reposition the screw to another position close to or adjacent to the original required position.



Removal is just as easy

  1. With your drill in hand and the Torx driver bit connected and secured within your drill chuck connect the Torx bit driver to the screw head, making sure Torx bit is fully seated in the screw head
  2. Hold the hook and guy rope in one hand, place drill in reverse, and screw out.
  3. Removal complete.


*We've all been in this situation before where your drill battery goes flat, if you get a flat battery you can connect a shifting spanner to the Torx driver bit shaft and unscrew manually to a point where you can remove the screw from the ground.*
