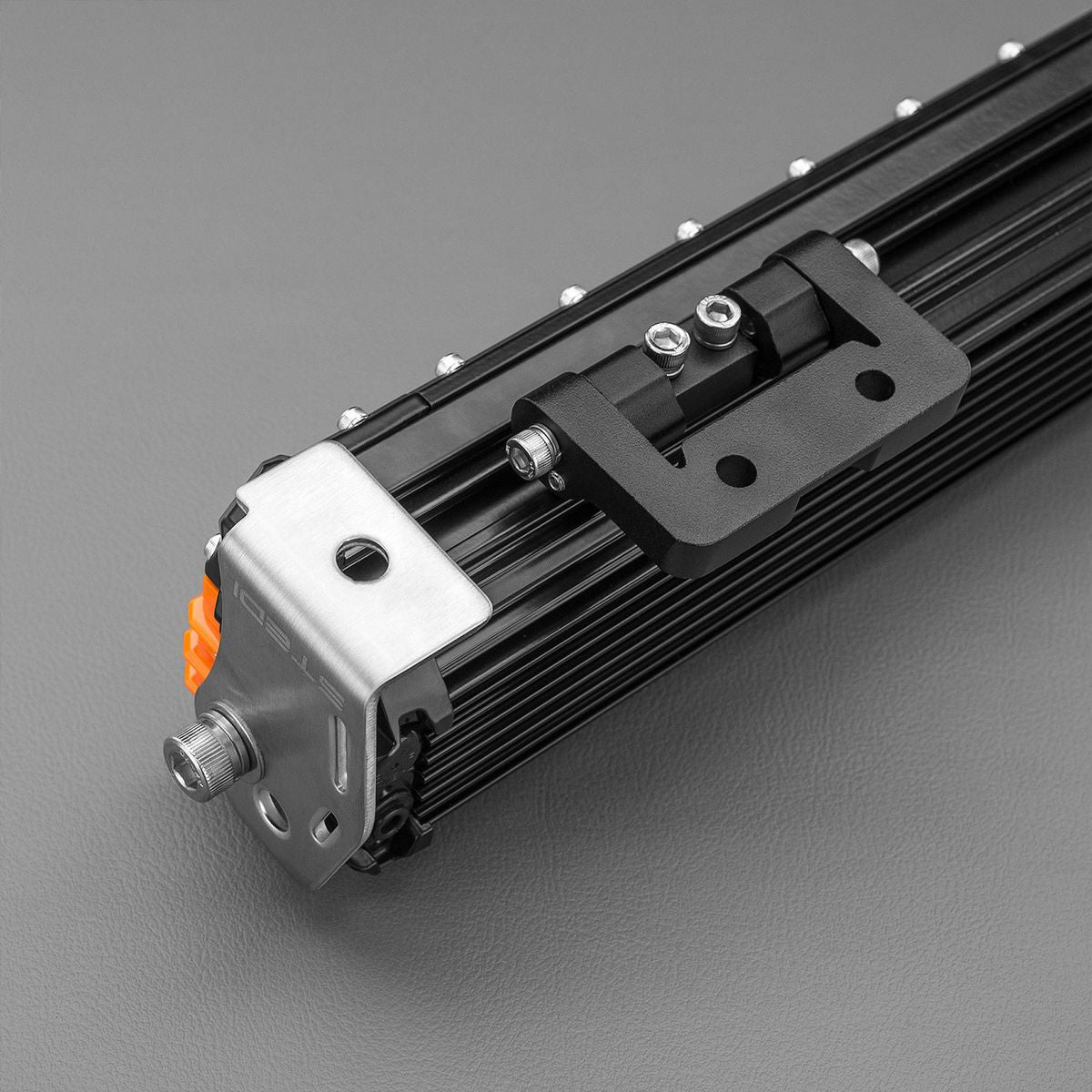

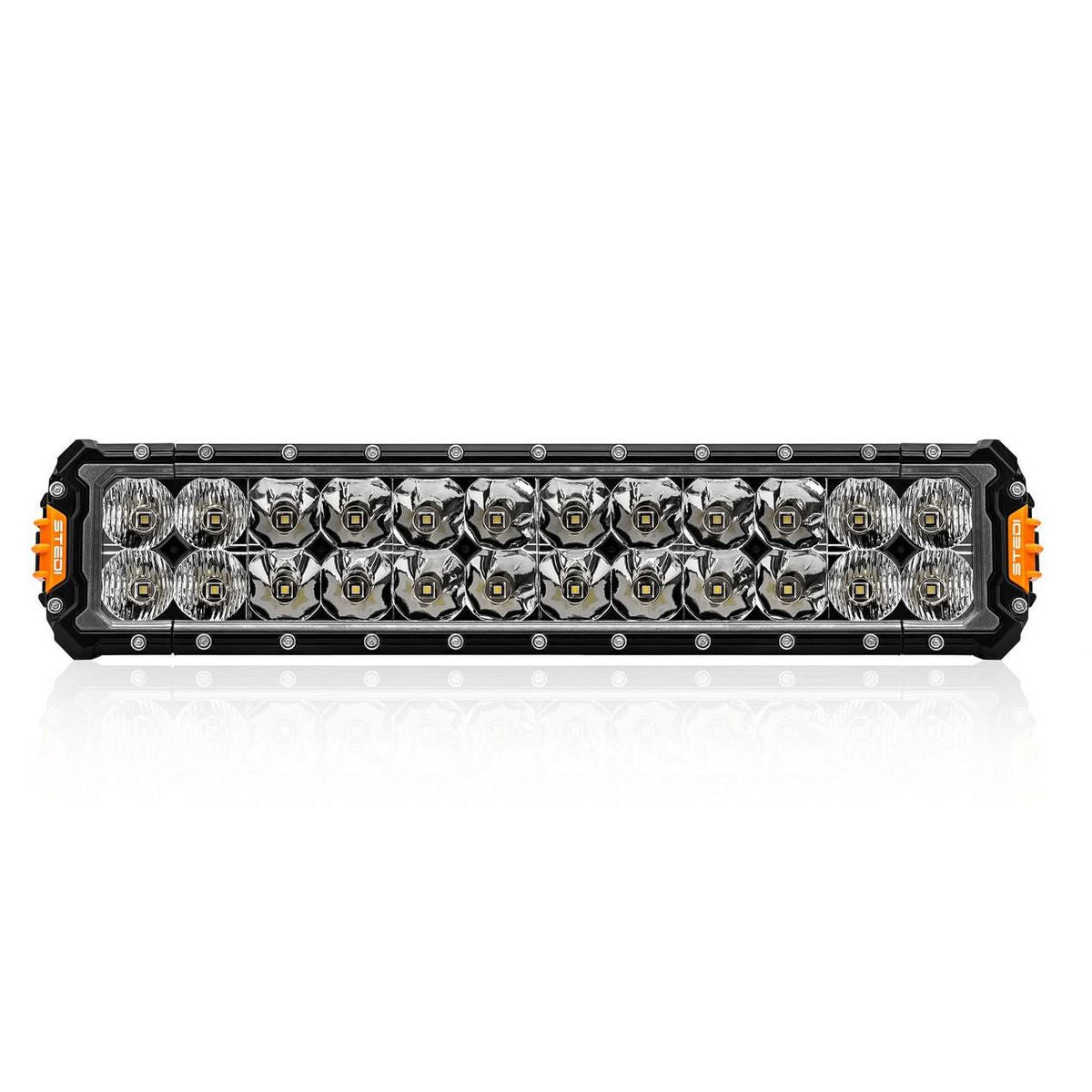

STEDI Ultra High Ouput Light Bar Double Row (24 LED) - ST3303 Pro 18.4 Inch - LED3303-PRO-24L

There's noone in the lighting game doing what STEDI's doing at the moment. The ST3303-PRO is an aggregation of all things that have made them the globally distributed, coveted brand born right here in Australia.

At the core of this new and improved product line are CREE LEDs. So, STEDI commissioned CREEs XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesnt sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship STEDI has effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.

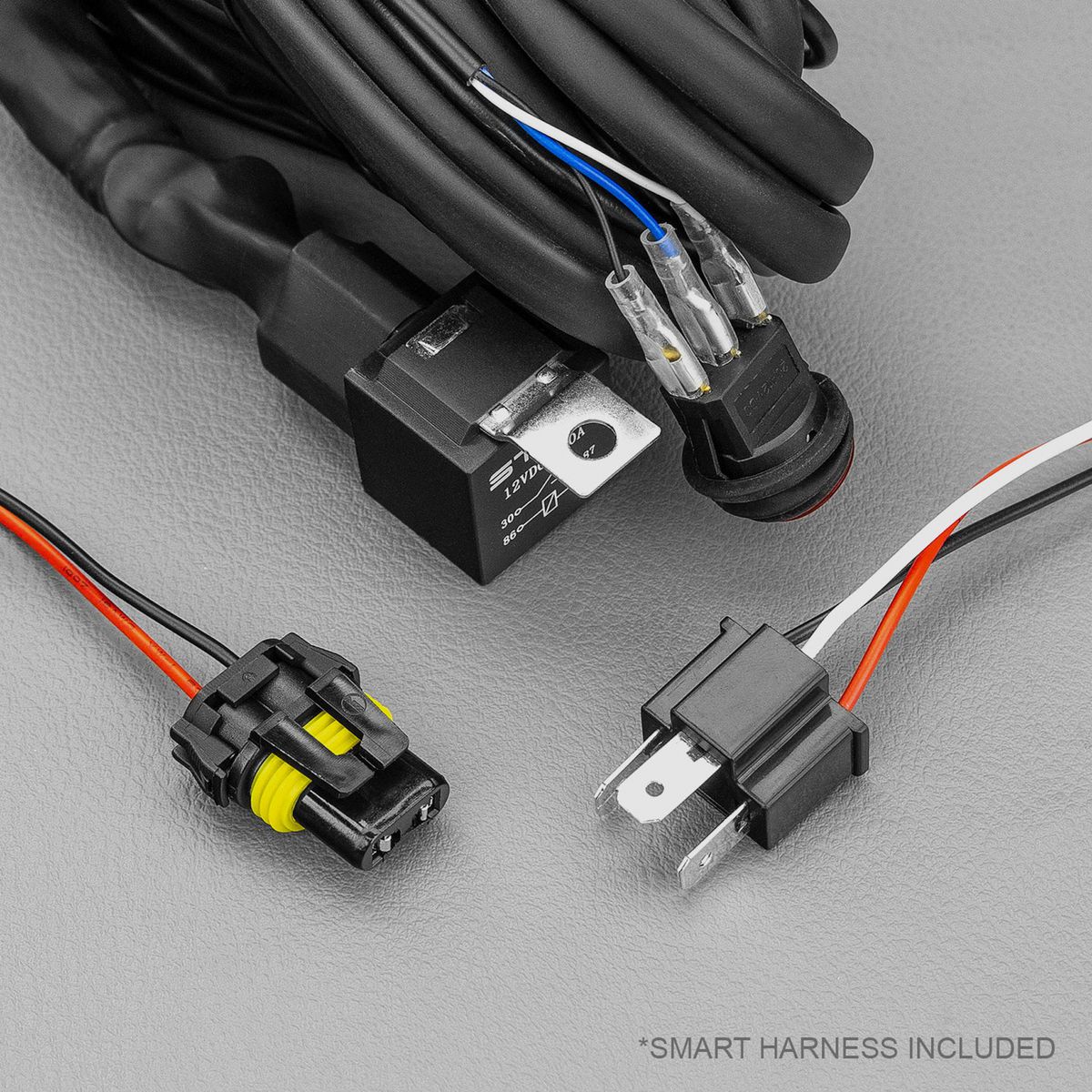

It's important to note that with these increases, accommodations must be made. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Now, you must, without any exception, we repeat, you must use the heavy-duty, dual-relay (yes dual relay!), dual-fused wiring harness we supply. The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakeably STEDI.

Specifications

• LED: 21 x CREE XPL Hi-Intensity LED
• Voltage: 9V - 32V
• Current Draw (Amperes): 11.9a @13.6v
• Raw Lumens: 26,280Lm
• Effective Lumens: 13,440Lm
• Peak Intensity: 435,600cd
• Colour Temperature (CCT): 5700K
• Lens Material: Optical Grade, Hard-Coated Lexan
• Housing Material: A360.0 Cast face plate, extruded Aluminum heat sink
• Ingress Protection: IP68
• Flood Beam: 50
• Spot Beam: 9
• Lifespan: 50,000hrs
• Operating Temperature: -40C ~ +150C
• Weight: 2.25kg
